Base Cap 2-1/16" - 3
Base Cap 2-1/16" - 3

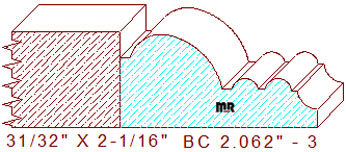

This designer baseboard cap 2-1/16" - 3 measures 2.062" wide by .968" thickness, allowing the detail to mill from five-quarter lumber. The lovely profile comprises a 7/64" wide line segment at a 23/32" thickness dimension on the left, this creates a quirk when applied to a piece of S4S (surfaced four sides) lumber after installation, connected to a thumbnailed shaped arc and two 7/32" half circles divided by 1/16" wide lines with a 7/32" cove on the right side of the pattern. We offer a similar but slightly smaller profile for your review and consideration, base cap 2.000" - 7.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.063
Depth of Cut: 0.782
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$200.53
Not Needed
Total:
$200.53
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$211.78
Not Needed
Total:
$211.78
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$228.66
Not Needed
Total:
$228.66
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
