Baseboard 3-1/4" - 40

Baseboard 3-1/4" - 40

Baseboard 3-1/4" - 40

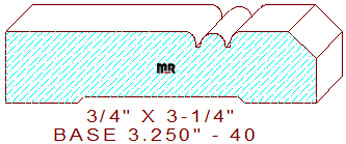

This single bead baseboard 3-1/4" - 40 measures 3.250" width by .750" thickness permitting the use of a 3-1/2 wide blank of four-quarter lumber for milling on industrial machinery. The custom profile comprises a two-inch flat line with a 1/8" rolled inner edge on the top left center. The round-over connects to a recessed (.022") half circle flanked by 3/64" broad sunk fillets and a 5/8" line segment with a forty-five-degree angle on the design's right side.

Do you ever wonder why certain wood species have tear-out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives. Purchasing 12/20 duel angle cutter heads will save substantial money when investing in this style of molder tooling.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .381" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
