Baseboard 3-1/2" - 8
Baseboard 3-1/2" - 8

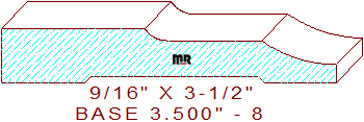

This delightful baseboard 3-1/2" - 8 measures 3.500" wide by .562" thickness, authorizing the pattern to be machined out of resawn six or solid four-quarter lumber. The captivating profile is comprised of a 1-1/2" wide flat line segment on the top left, joined to a 1-7/32" wide cong'e derived from a 9/32" cove in the center, merged with a shallow 1-3/8" cavetto leaving a 3/16" thickness dimension on the right side of the pattern. We offer an alternative profile with similar design characteristics for your review and consideration, baseboard 3.500" - 9.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.375
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$264.00
$264.00
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$281.00
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$306.50
Total:
$613.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
