Base Moulding 3-1/2" - 9

Base Moulding 3-1/2" - 9

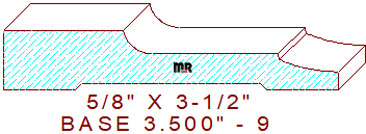

This designer baseboard moulding 3-1/2" - 9 measures 3.500" wide by .625" thickness, allowing the pattern to be machined out of four quarter lumber. The beautiful custom profile is comprised of a 1-1/4" wide flat line segment on the top left, joined to a 1-5/8" wide congee made up from a 5/16" cove in the center, merged with a 1/16" vertical drop in elevation and a shallow 1-19/32" cavetto, leaving a 3/16" thickness dimension on the right side of the pattern. We offer an alternative profile with similar design characteristics for your review and consideration, base moulding 3.500" - 8.

Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years’ experience in woodworking, and a former Weinig moulder/grinder field service technician. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing the architectural decor of any room with any one or more of our attractive molding patterns.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.500" / Depth of Cut = .437" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
