Baseboard 4" - 32
Baseboard 4" - 32

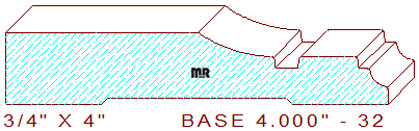

This unique baseboard 4" - 32 measures 4.000" wide by .750" thickness. The creative profile comprises a 2-1/64" broad straight line attached to a 1-13/32" radius cavetto, joined to a 1/4" wide by 1/8" deep dado, which transitions into a 5/8" wide by 1/8" tall raised fillet, connected to a notched fillet and a 3/16" radius cove positioned at the top of the pattern. We offer another pattern design to complement this detail door/window casing 4.000" - 116 for your review and consideration.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.725
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.00
$290.00
Total:
$599.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$328.00
$309.00
Total:
$637.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$356.50
$337.50
Total:
$694.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
