Casing Moulding 4" – 116

Casing Moulding 4" – 116

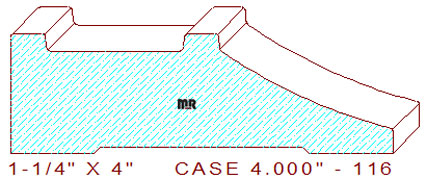

This Casing Moulding 4" – 116 measures 4.000" wide by 1.250" thickness, with a depth of cut of 1.180" for the top set of moulder knives, this is a rather large cut for any industrial style moulder, please check the moulder cutting circle limits before producing any knives for this detail.

The profile is comprised of a 1/16" radius bidirectional cong'e, (cove tangent off a straight line), flanked by a 3/8" wide, by 3/16" tall, raised fillets that transition into a 5-1/2" radius cavetto, leaving a 1/4" thickness dimension on the smaller side of the pattern. We have a beautiful baseboard detail for your review located here that would complement this profile when installed.

Utilize any of our moulding profiles to create a stylish custom moulding catalog for your millwork company, offer more eye-catching moulding patterns to your clients, while reducing production resources spent on moulding knife design.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
