Base Moulding 4-1/2" - 2

Base Moulding 4-1/2" - 2

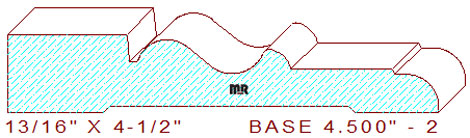

This Base Moulding 4-1/2" - 2 measures 4.500" wide by .812" thickness, this dimension also happens to be the depth of cut on the top horizontal moulder cutters. Caution; the moulding knives will come within .020" of the moulder bed plates while milling this detail on an industrial style moulder. Please search our backout category for a suitable relief cut for this detail, we have a few options available for your consideration.

The inventive profile is comprised of a 1-1/4" wide by 9/32" deep stepped fillet that transitions into a 3/32" wide sunk fillet, attached to a cyma reversa with a transitional beak shape, connected to a 1-1/16" wide eased edge fillet with a 11/32" radius quarter round circle positioned at the top of the pattern. We have two more similar shaped profiles for you to choose from, Case 4.500" - 5 and Case 4.500" – 43.

Try one of our fancy base shoe or plant on moulding designs on the bottom of the profile that will compliment this pattern, and make it irresistibly compelling. Note; make sure you change the width size, or reset the parameters so you are able to view the size options we have available.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
