Casing Moulding Profile 4-1/2" – 43

Casing Moulding Profile 4-1/2" – 43

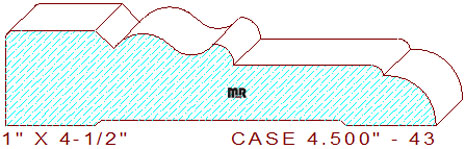

This Casing Moulding Knife Design 4-1/2" – 43 measures 4.500" wide by 1.000" thickness, which also happens to be the depth of cut on the top horizontal moulder cutters. Caution; the moulding knives will come within .020" of the moulder bed plates while milling this detail on an industrial style moulder. Please search our backout category for a suitable relief cut for this detail, we have a few for your consideration.

The stylish profile is comprised of a 15/16" wide horizontal fillet, flanked by a 3/32" radius eased edge on one side, and a forty-five degree chamfer on the opposite side, connected to a cyma reversa with a beak shape on the end, that transitions into a 1-9/16" wide fillet with a 1/8" radius edge, connected to a 1/2" radius quarter round circle positioned on the thin side of the pattern.

We have two other similar shaped profiles for your consideration located here, Base 4.500" – 2 and Case 4.500" – 5. Try utilizing one of our many decorative backband mouldings on the side edge of this pattern. Just change the width search parameters to find a stylish, unique, and compelling backband that will customize this profile.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
