Base Moulding 5" - 17

Base Moulding 5" - 17

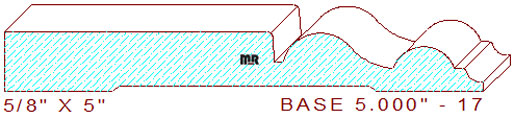

This distinctive colonial baseboard moulding 5" - 17 measures 5.000" wide by .625" thickness. The attractive profile is comprised of a 2-13/16" wide horizontal line attached to a 5/16" deep by 3/32" wide sunk fillet, connected to a two-tangent radius cyma reversa, joined to a 41/64" wide half round circle with an eased edge fillet and a small 5/32" radius cove at the top of the design. We offer a few other colonial themed profiles in the same width for your review and consideration, base molding 5" - 16, base 5" - 50, base 5" - 53, base 5" - 72 and baseboard 5" - 98. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Try one of our fancy base shoe .687" - 1, or plant on moulding designs on the bottom of the profile, find an irresistibly compelling pattern by simply changing the width search parameters. Let us assist you in shaping your home’s astonishing architectural decor, one attractive moulding profile at a time.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.000" / Depth of Cut = .522" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
