Baseboard 5" - 53

Baseboard 5" - 53

Baseboard 5" - 53

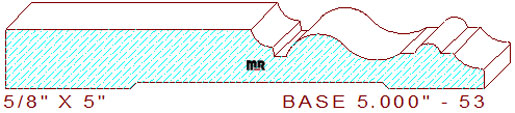

This classic colonial baseboard 5" - 53 measures 5.000" wide by .625" thickness. The acrylic template is designed to accommodate sizes up to 7-1/4" wide. The traditional profile is composed of a 2-9/16" broad flat line on the left, connected to a 1/4" cove with a 3/32" vertical step that transitions into a 1/8" wide sunk fillet, attached to a two tangent radius cyma reversa that joins to a 9/32" wide half round bead flanked by small horizontal line segments, with a 21/64" cove on the right side of the pattern. We offer a few other colonial-themed profiles in the same width for your review and consideration, baseboard 5" - 16, baseboard 5" - 17, baseboard 5" - 50, baseboard 5" - 72 and baseboard 5" - 98.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.576
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$330.50
$330.50
Total:
$661.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$353.50
$353.50
Total:
$707.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$376.50
$376.50
Total:
$753.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
