Baseboard 5-1/4" - 28

Baseboard 5-1/4" - 28

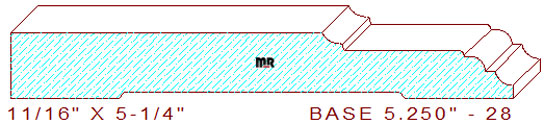

This lovely 5-1/4" - 28 base moulding measures 5.250" width by .687" thickness, allowing the use of a 5-1/2" wide blank of four-quarter lumber for milling on an industrial moulder. The attractive profile contains a 3-1/4" broad horizontal line segment on the top left. The flat section connects to a 13/64" cove with a 5/64" vertical step merged with a 1-1/4" flat line with a 1/16" rolled corner in the center. The remaining section contains a 5/32" radius quarter round arc connected to a 7/64" broad fillet and a 3/16" cove on the design's right side. We offer a matching door casing with similar design characteristics for your review and consideration, door/window casing 3.000" - 65.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.549
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$355.00
$355.00
Total:
$710.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$379.00
$379.00
Total:
$758.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$415.00
$415.00
Total:
$830.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
