Baseboard 5-1/2" - 60
Baseboard 5-1/2" - 60

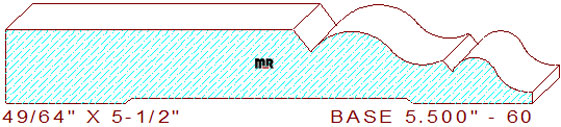

This fantastic 5-1/2" - 60 base moulding measures 5.500" width by .750" thickness, enabling a 5-3/4" wide blank of four-quarter lumber for machining on an industrial moulder. The stunning profile contains a three-inch flat line with a 19/64" broad beveled line on the top center. The angled line connects to a two tangent radius s-shaped curvature with a 1/8" chamfer, joined to a graceful ogee leaving a 1/8" thickness dimension on the design's right side. We offer many different styles of door & window casings to complement this detail; here is just one you may want to review and consider, door casing 3.250" - 4.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.643
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.00
$368.00
Total:
$761.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$418.00
$393.00
Total:
$811.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$455.50
$430.50
Total:
$886.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
