Baseboard 5-1/2" - 67
Baseboard 5-1/2" - 67

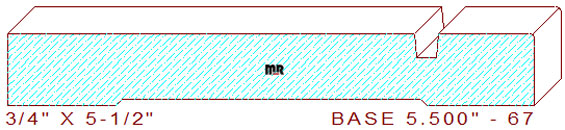

This single groove 5-1/2" - 67 base moulding measures 5.500" width by .750" thickness, necessitating a 5-3/4" wide blank of four-quarter lumber for milling on a commercial moulder. The simplistic profile comprises a 4-1/4" broad flat line segment on the top center. The horizontal line connects to a 1/4" wide by 1/4" deep dado merged with a one-inch wide fillet with a 1/16" eased edge on the design's right side.
Our professionally designed acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail and prolong the milling time between sharpening. Whether you own an industrial shaper or a Weinig, Wadkin, Leadermac, SCMI, Diehl, Northtech, or Homag moulder, our precision cutters will mill flawlessly on them all.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.250
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.00
$368.00
Total:
$736.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.00
$393.00
Total:
$786.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.50
$430.50
Total:
$861.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
