Baseboard 6" - 145

Baseboard 6" - 145

Baseboard 6" - 145

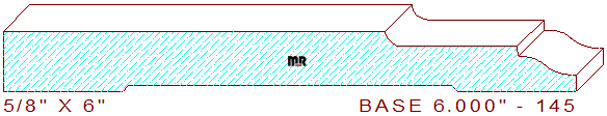

This colonial 6" - 145 base moulding 6" - 145 measures 6.000" wide by .625" thick. The custom profile composes a four-inch wide straight line on the left, connected to a 1-3/8" wide cong'e consisting of a 3/16" cove with a 7/64" vertical step, joined to a 5/8" wide two tangent radius ogee leaving an 11/64" thickness dimension on the right side of the pattern. We have a couple of other similar details in the same width but with altered inner dimensions for your review and consideration, baseboard 6.000" - 151 and baseboard 6.000" - 160.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.454
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$380.50
Total:
$761.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.50
$407.50
Total:
$815.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$434.50
$434.50
Total:
$869.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
