Baseboard 6" - 151
Baseboard 6" - 151

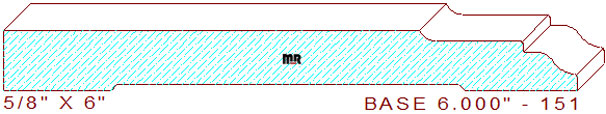

This old world 6" - 151 base moulding measures 6.000" wide by .625" thickness. The pattern will necessitate four-quarter lumber for milling on an industrial style molder. The designer profile is composed of a 4-11/32" broad straight line on the left, connected to a 1-3/32" wide cong'e consisting of a 3/16" cove with a 1/8" vertical step, joined to a 9/64" broad line with a two tangent radius ogee leaving an 11/64" thickness dimension on the right side of the pattern. We have a couple of other similar details in the same width but with altered inner dimensions for your review and consideration, baseboard 6.000" - 145 and baseboard 6.000" - 160.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.455
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$394.00
$394.00
Total:
$788.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$421.00
$421.00
Total:
$842.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$461.50
$461.50
Total:
$923.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
