Baseboard 6-1/2" - 11

Baseboard 6-1/2" - 11

Baseboard 6-1/2" - 11

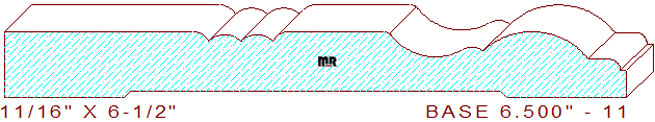

This stylish 6-1/2" - 11 base moulding measures 6.500" wide by .687" thickness. The awesome profile is composed of a 2-1/8" wide horizontal line with a 3/16" radius edge that joins to two offsets 11/32" wide recessed below the plane beads. There connected to a 19/32" radius scotia tangent off of a 13/64" arc that transitions into a 1-3/32" wide convex semicircle, attached to an 11/32" wide horizontal line with a 1/8" eased edge and a 1/16" wide line segment leaving a 7/32" thickness dimension at the top of the pattern. We offer a similar profile with different inner dimensions and geometrical shapes for your review and consideration, baseboard 6.500" - 9.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.500
Depth of Cut: 0.405
Bottom Cutter Head
Width: 6.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$405.50
$405.50
Total:
$811.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$434.50
$434.50
Total:
$869.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$463.50
$463.50
Total:
$927.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
