Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Baseboard 7" - 58

Baseboard 7" - 58

Baseboard 7" - 58

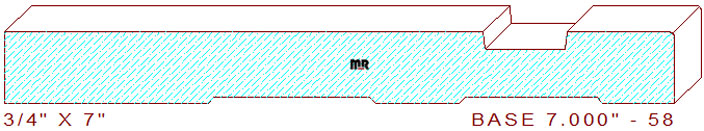

This channeled 7" - 58 base moulding measures 7.000" wide by .750" thickness, enabling the detail to be milled out of four-quarter lumber. The attractive profile is comprised of a 5" broad horizontal line segment in the left center, connected to a 7/8" wide by 3/16" deep dado that joins to a 1-1/8" wide raised fillet with a 1/16" radius edge on the top right side of the pattern. We offer a few other profiles in the same width but with different sized dado's as well as a matching door casing for your review and consideration, baseboard 7.000" - 29, baseboard 7.000" - 37 and door casing 3.500" - 53.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.000
Depth of Cut: 0.219
Bottom Cutter Head
Width: 7.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.50
$430.50
Total:
$861.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$461.50
$461.50
Total:
$923.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$492.50
$492.50
Total:
$985.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
