Baseboard 7" - 6
Baseboard 7" - 6

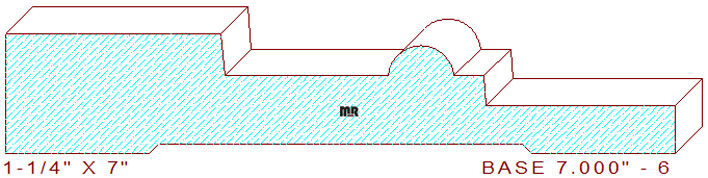

This modern 7" - 6 base moulding measures 7.000" wide by 1.250" thick. The stylish profile is comprised of a 2-1/4" wide by 7/16" deep stepped fillet, attached to a 1-3/4" wide sunk fillet, joined to an 11/16" wide half circle in the top center. It's connected to a 5/16" wide by 5/16" deep stepped fillet that transitions into a 2" wide sunk fillet, leaving a 1/2" thickness dimension on the thin side of the pattern. We also have a door/window casing that will complement this profile for your review and consideration, door casing 5.343".
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.000
Depth of Cut: 0.750
Bottom Cutter Head
Width: 7.000
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$477.00
$446.00
Total:
$923.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$508.00
$477.00
Total:
$985.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$554.50
$523.50
Total:
$1078.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
