Door/Window Casing 5-11/32"
Door/Window Casing 5-11/32"

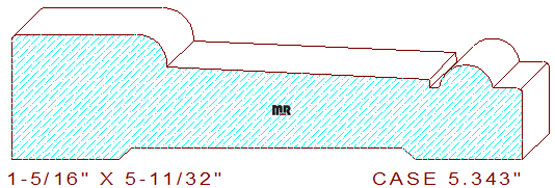

This modern 5-11/32" door casing measures 5.343" wide by 1.312" thick. The modern-day profile is comprised of a 1-5/8" wide horizontal fillet with a 1/16" radius on the outer edge and a 5/16" radius that transitions into a 2-3/4" wide beveled line, attached to a 3/32" wide quirk and a 9/16" wide half round circle, joined to a 5/16" wide horizontal line with a 1/16" radius edge leaving a 3/4" thickness dimension on the thin side of the pattern. We also have a base moulding that will complement this profile for your review and consideration, baseboard 7.000" - 6.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.343
Depth of Cut: 0.781
Bottom Cutter Head
Width: 5.343
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$384.21
$359.84
Total:
$744.04
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$408.58
$384.21
Total:
$792.79
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$445.14
$420.77
Total:
$865.90
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
