Baseboard 7-1/4" - 17
Baseboard 7-1/4" - 17

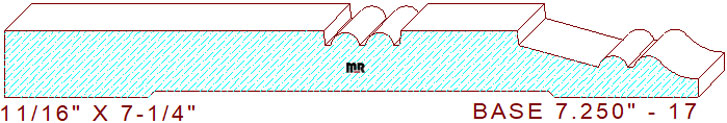

This visually inspiring 7-1/4" - 17 base moulding measure 7.250" width by .687" thickness, necessitating a 7-1/2" wide blank of four-quarter lumber for milling on an industrial molder. The prestigious profile comprises a 3-11/32" broad flat line with a 9/64" vertical step on the top left. The line connects to a 13/16" wide channel with two half-round beads divided by tiny sunken fillets attached to a 1-7/32" full raised fillet in the center. The pattern drops 5/32" in elevation and merges with a 7/8" downsloping angled line that transitions into a 5/16" convex semicircle. Joined to a 1/16" fillet and a two tangent radius s-shaped curvature, leaving a 3/16" thickness dimension on the design's right side. We offer a slightly larger pattern with similar design characteristics for your review and consideration, baseboard 7.375" - 10.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.250
Depth of Cut: 0.500
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$459.00
$459.00
Total:
$918.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$491.00
$491.00
Total:
$982.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$539.00
$539.00
Total:
$1078.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
