Baseboard 7-3/8" - 10
Baseboard 7-3/8" - 10

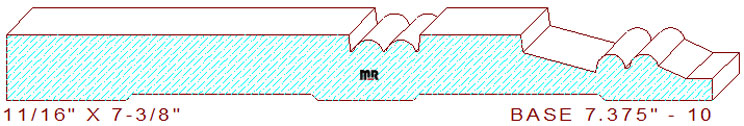

This fashionable 7-3/8" - 10 base moulding measures 7.375" width by .687" thickness, requiring a 7-5/8" wide blank of four-quarter lumber for milling on an industrial molder. The custom profile contains a 3-37/64" broad flat line on the top left. The line segment connects to a 3/4" wide decorative channel consisting of two recessed half-round beads divided by 1/32" fillets joined to a 1-1/16" wide raised fillet in the center. The remaining portion of the pattern retains a 3/16" vertical step attached to a 25/32" downsloping angled line, merged with two additional half-round beads and a 5/16" broad angle with a 9/32" flat line on the design's right side. We offer a slightly smaller pattern with similar design characteristics for your review and consideration, baseboard 7.250" - 17.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.375
Depth of Cut: 0.464
Bottom Cutter Head
Width: 7.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$465.50
$465.50
Total:
$931.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$498.00
$498.00
Total:
$996.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$546.75
$546.75
Total:
$1093.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
