Baseboard 7-1/2" - 4
Baseboard 7-1/2" - 4

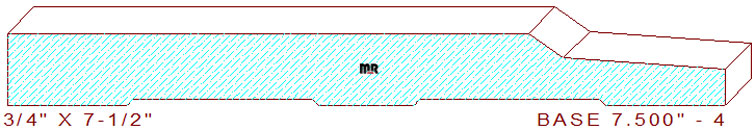

This universal 7-1/2" - 4 base moulding measures 7.500" width by .750" thickness, enabling a 7-3/4" blank of four-quarter lumber for machining on a commercial moulder. The simplistic profile contains a 5-7/16" broad flat line segment on the top center. The horizontal line joins a 3/8" wide thirty-five-degree angled line, merged with a 1-11/16" four-degree tapered section leaving a 3/8" thickness dimension on the design's right side.
Utilize one of our many base caps or panel mould 1.937" - 4 profiles to complement this pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.500
Depth of Cut: 0.393
Bottom Cutter Head
Width: 7.500
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$472.00
Not Needed
Total:
$472.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$505.00
Not Needed
Total:
$505.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$554.50
Not Needed
Total:
$554.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
