This Reeded Base Moulding 7-13/16" measures 7.812" wide by .625" thickness with a .500" depth of cut on the top horizontal moulding blades. Browse our backout category for an appropriate relief cut for this pattern, we have a few options for you to select from. You may want to change the backout search parameters by a quarter of an inch or so to find a more suitable size cutter to mill the bottom side of this pattern.

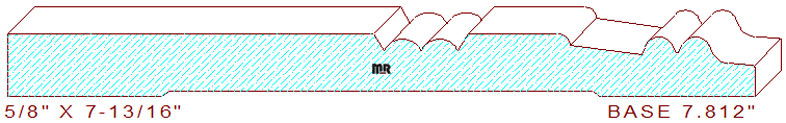

The profile is comprised of a 3-53/64" wide straight line, connected to two recessed 7/32" radius half round circles flanked by small chamfers, attached to a 1-1/16" wide straight line with a 1/8" radius edge, joined to an angled line and two more raised beads with a 3/16" radius congee located at the top of the pattern. We have a few similar profiles in different size widths for your review and consideration, Base Moulding 8.250 - 3, Base 8.625" - 21, Base 8.625" - 25, and Base 8.625" - 54.
From just an idea in your mind, to reality in your home, our moulding profiles reflect the beauty and style of your imagination, let us help design your custom pattern today. Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
