Baseboard 8-5/8" - 54
Baseboard 8-5/8" - 54

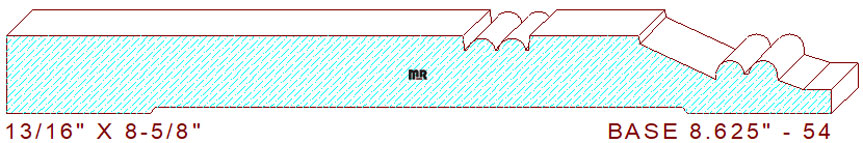

This beaded 8-5/8" - 54 base moulding measures 8.625" wide by .812" thick. The beautiful beaded profile is comprised of a 4-25/32" wide straight line, connected to two recessed 9/64" radius half round circles, divided by small sunk fillets and flanked by 9/64" tall vertical lines, attached to a 1-1/8" wide by 5/64" deep stepped line, joined to a beveled line and two more half round circles with a small chamfer and a 19/64" wide straight line located at the top of the design. We currently have a few other similar profiles in different size width and thickness for your review and consideration, baseboard 7.812", baseboard 8.250" - 3, baseboard 8.625" - 21, and baseboard 8.625" - 25.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.625
Depth of Cut: 0.812
Bottom Cutter Head
Width: 8.625
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$568.00
$530.50
Total:
$1098.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$605.50
$568.00
Total:
$1173.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$661.75
$624.25
Total:
$1286.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
