Baseboard 8" - 17
Baseboard 8" - 17

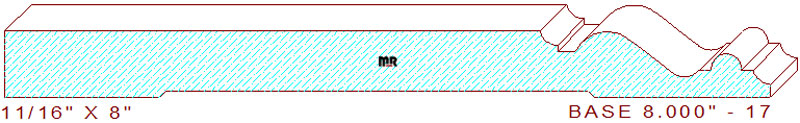

This traditional 8" - 17 base moulding measures 8.000" width by .813" thickness enabling the use of four-quarter lumber for machining on an industrial moulder. The colonial-themed profile contains a 5-19/32" broad flat line on the top center. The flat line connects to a 3/16" cove with a 1/16" vertical step, merged with a 3/16" sunk fillet attached to a gracefully downsloping s-shaped curvature. The remaining portion of the pattern retains a 5/16" broad half-circle flanked by short horizontal lines with a 13/64" cove on the design's right side. We offer a wide selection of colonial baseboards in our molding catalog; here is one in the identical width you may want to review and consider, baseboard 8.000" - 24.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.000
Depth of Cut: 0.558
Bottom Cutter Head
Width: 8.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$498.00
$498.00
Total:
$996.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$533.00
$533.00
Total:
$1066.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$585.50
$585.50
Total:
$1171.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
