Base board 8" - 24
Base board 8" - 24

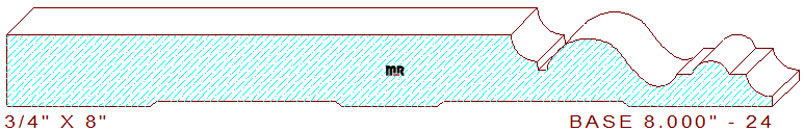

This traditional 8" - 24 base moulding measures 8.000" wide by .750" thickness, requiring an 8-1/4" wide blank of four-quarter lumber for milling on an industrial moulder. The customary profile contains a 5-17/64" broad flat line segment on the top left center. The line connects to a 9/32" cove merged with a 3/32" wide by 3/32" deep sunken fillet joined to a graceful two tangent radius s-shaped curvature. The wavy portion connects to a small half-round flanked by tiny fillets with a 9/32" cove on the design's right side. We offer a wide selection of colonial baseboards in our catalog; here is one in the identical width you may want to review and consider, baseboard 8.000" - 17.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.000
Depth of Cut: 0.643
Bottom Cutter Head
Width: 8.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$533.00
$498.00
Total:
$1031.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$568.00
$533.00
Total:
$1101.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$620.50
$585.50
Total:
$1206.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
