Baseboard 8" - 92
Baseboard 8" - 92

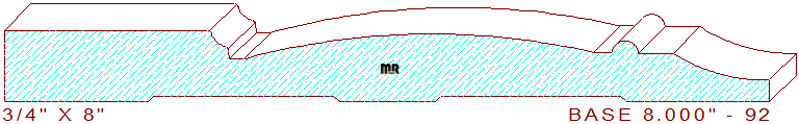

This fancy 8" - 92 baseboard moulding measures 8.000" wide by .750" thickness, enabling the pattern to be milled from four-quarter lumber. The stylish profile is composed of a 2-5/32" wide area on the top left. It's attached to a 7/32" cove and a 5/32" wide by 1/8" deep sunk fillet joined to a 7-1/2" radius arc in the center, connected to a 9/32" wide half-round bead flanked by two small line segments and a 1-23/32" cove leaving a 15/64" thickness dimension on the right side of the design. We offer the matching door casing for your review and consideration, door casing 3.687" - 4.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.000
Depth of Cut: 0.520
Bottom Cutter Head
Width: 8.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$498.00
$498.00
Total:
$996.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$533.00
$533.00
Total:
$1066.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$585.50
$585.50
Total:
$1171.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
