Door/Window Casing 3-11/16" - 4
Door/Window Casing 3-11/16" - 4

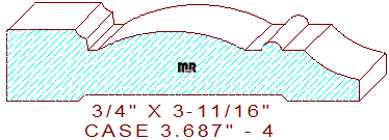

This eye-catching door/window casing measures 3-11/16" wide by 3/4" thickness, permitting the pattern to be machined out of four-quarter lumber. The decorative profile is composed of a 23/32" broad line with a 3/64" eased outer edge and a 5/32" cove on the inside top left, connected to a 1/8" deep by 7/64" wide sunk fillet joined to a 1-37/64" radius arc in the center, attached to a 9/32" wide half round bead flanked by two small fillets and a 15/16" cove with a 3/64" eased edge on the right side of the design. We offer many beautiful baseboard designs to complement this pattern for your review and consideration; here is one we think you will like, baseboard 8.000" - 92.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.688
Depth of Cut: 0.699
Bottom Cutter Head
Width: 3.688
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$291.53
$273.78
Total:
$565.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.28
$291.53
Total:
$600.81
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.91
$318.16
Total:
$654.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
