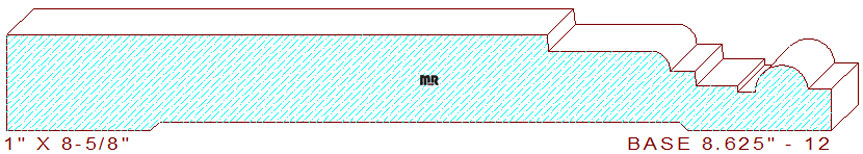

The profile is comprised of a 5-21/32" horizontal fillet attached to the detail portion of the design, it measures just under 3" wide. The profile is comprised of a combination of various widths stepped fillets, that transition into a half round bead flanked by two sunk fillets. We also have a stylish plinth block moulding design that would complement this pattern nicely.
This professionally drafted cad dxf file contains two high precision moulding template designs to create moulder cutters for this gorgeous base detail, one of them is designed to mill the entire width of the pattern, the other one is fabricated to mill just the detail portion only.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
