Plinth Block 4-1/2"
Plinth Block 4-1/2"

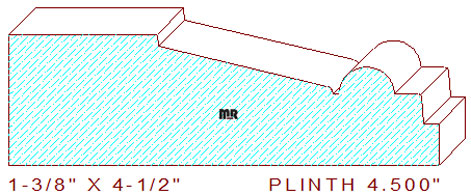

This plinth block 4-1/2" measures 4.500" wide by 1.375" thickness, with a .937" depth of cut on the top horizontal moulder cutters.
The profile is comprised of a 1-9/16" wide by 1/8" deep stepped fillet, attached to a beveled line with a 5/64" radius edge that transitions into a half-circle flanked by small fillets, with a 5/32" wide, by 5/16" deep notched fillet positioned at the top of the pattern. We also have a stylish baseboard moulding design that would complement this pattern nicely.
We offer many exceptional grades of quality high-speed steel and carbide in various size widths for grinding all our moulding profile designs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
