Baseboard 9"
Baseboard 9"

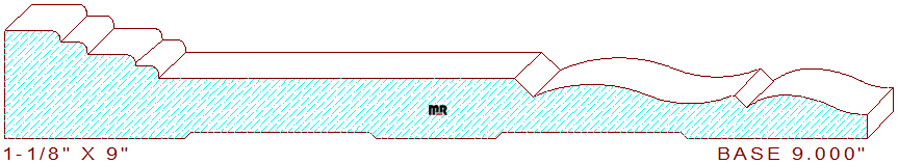

This large stylish 9" baseboard measures 9.000" wide by 1.125" thickness, necessitating the use of five or six-quarter lumber for milling on an industrial moulder. The beautifully tiered profile is composed of a series of four stepped line segments with 3/32" eased edges on the left, connected to a 3-23/32" wide straight line with a 3/16" wide beveled edge in the center, attached to a shallow two tangent radius ogee with a 1/8" wide chamfered edge that joins to another shorter cyma reversa on the right side of the pattern. We have a matching casing pattern you may want to review and consider, door casing 6.000" - 11.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 9.000
Depth of Cut: 0.875
Bottom Cutter Head
Width: 9.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$589.00
$550.00
Total:
$1139.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$628.00
$589.00
Total:
$1217.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$686.50
$647.50
Total:
$1334.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
