Door/Window Casing 6" - 11
Door/Window Casing 6" - 11

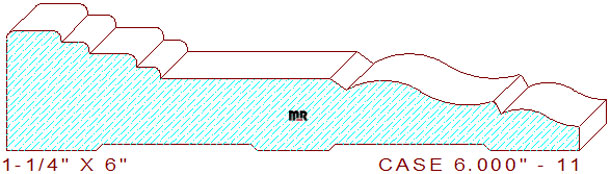

This prepossessing 6" - 11 door/window casing measures 6.000" wide by 1.250" thickness, necessitating the use of six-quarter lumber for machining on an industrial moulder. The elegantly tiered profile is composed of a series of four stepped line segments with 3/32" eased edges on the top left. It's connected to a 1-25/32" flat line with an 11/64" wide beveled edge in the center, attached to a shallow two tangent radius ogee with a 1/16" wide chamfered edge joined to a short cyma reversa on the right side of the pattern. We offer a matching baseboard pattern you may want to review and consider, baseboard 9.000".
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 1.000
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$421.00
$394.00
Total:
$815.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$448.00
$421.00
Total:
$869.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$488.50
$461.50
Total:
$950.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
