Bed Mould 2-7/8"

Bed Mould 2-7/8"

Bed Mould 2-7/8"

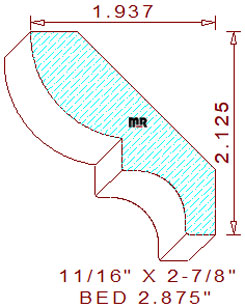

This eye-pleasing 2-7/8" bed mould measures 2.875" wide by .687" thickness, enabling the pattern to be milled sprung (laying horizontally flat) out of four-quarter lumber. The appealing supporting profile is composed of a 1-7/64" radius convex semicircular arc on the top left, connected to a 21/64" tall vertical fillet in the center, joined to a 1/2" cove with a 5/16" wide horizontal line segment on the bottom right side of the design. The spring angles are fixed at forty-five degrees these clear back bevels keep the inner profile parallel to the wall and ceiling, they also set the installed height at 2-1/8" tall with a projection of 1-15/16" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.345
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.482
Top Cutter Head
Width: 2.875
Depth of Cut: 0.450
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$224.25
Not Needed
Total:
$504.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$238.75
Not Needed
Total:
$538.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$253.25
Not Needed
Total:
$571.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
