Bed Mould 3-3/4"
Bed Mould 3-3/4"

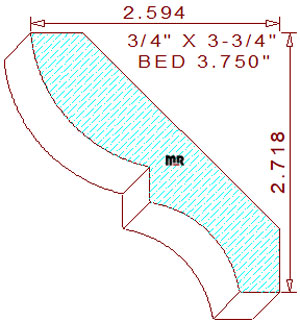

This attractive bed mould 3-3/4" measures 3.750" wide by .750" thickness, allowing the pattern to be milled sprung (laying horizontally flat) out of four-quarter lumber. The embellished supporting profile comprises a 19/32 radius convex semicircular arc on the top left, connected to a 3/8" tall vertical line segment in the center, joined to a 1-7/64" cove with a 13/32" wide horizontal line on the bottom right. The spring angles are fixed at forty-five degrees, these clear back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 2-23/32" tall with a projection of 2-19/32" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.384
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.469
Top Cutter Head
Width: 3.750
Depth of Cut: 0.459
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$277.00
Not Needed
Total:
$567.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$295.00
Not Needed
Total:
$604.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$322.00
Not Needed
Total:
$659.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
