Bed Mould 3-13/16"

Bed Mould 3-13/16"

Bed Mould 3-13/16"

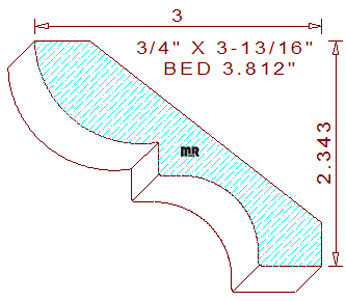

This bed mould, 3-13/16", measures 3.812" wide by .750" thick. The lovely profile is comprised of a 1-7/64" radius arc at the top, connected to an 11/32" tall vertical fillet in the center, joined to a 13/16" radius cove, with an attached 21/32" wide horizontal fillet on the bottom of the design. The spring angles get fixed at thirty-eight and fifty-two degrees; search our bevels category by these degrees to find two back bevel cutters appropriate for this lovely bed moulding design, these specific back bevels set the installed height at 2-11/32" tall with a projection of 3" wide. Two high points in the detail were intentionally positioned on the same level plane. This specialized design feature will assure excellent hold-down conditions while milling the detail on industrial equipment, providing the pressure shoe is set parallel to the machine bed plates.

Ever wonder why certain species of lumber have tear-out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.279
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.450
Top Cutter Head
Width: 3.813
Depth of Cut: 0.486
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$271.15
Not Needed
Total:
$594.65
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$289.40
Not Needed
Total:
$631.90
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$307.65
Not Needed
Total:
$669.15
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
