Bed Mould 3-7/8"
Bed Mould 3-7/8"

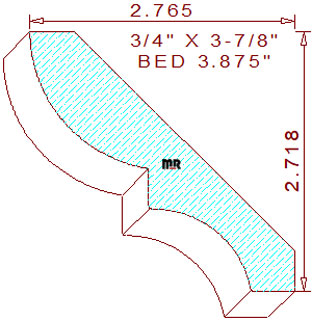

This well-balanced bed mould 3-7/8" measures 3.875" wide by .750" thickness, allowing the detail to be milled sprung (laying horizontally flat) out on four-quarter lumber. The decorative supporting profile is comprised of a 1-15/32" radius convex semicircular arc of the top left, connected to a 13/32" tall vertical line segment in the center, joined to a 1-1/32" cove with a 7/16" wide horizontal line on the bottom right. The spring angles are fixed at forty-five degrees, these clear back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 2-13/32" tall with a projection of 1-21/32" wide.
Looking for that special profile to enhance the architectural style of your current project, send us a sketch, custom profile design is our specialty. Experience the elegant beauty we can create together from your outlined idea concepts and our vast knowledge of the woodworking industry.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.332
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.298
Top Cutter Head
Width: 3.875
Depth of Cut: 0.547
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$283.50
Not Needed
Total:
$573.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$302.00
Not Needed
Total:
$611.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$329.75
Not Needed
Total:
$667.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
