Bed Mould 5-1/4"

Bed Mould 5-1/4"

Bed Mould 5-1/4"

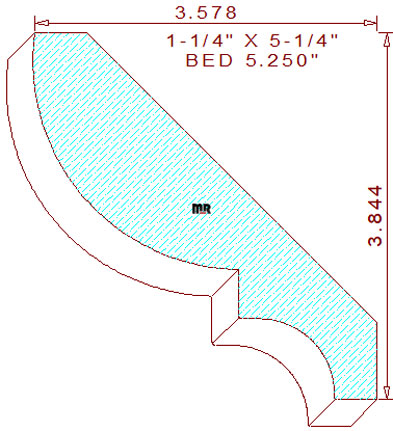

This elegant bed mould 5-1/4" measures 5.250" wide by 1.250" thickness, necessitating the pattern to be milled sprung (laying horizontally flat) out of six-quarter lumber. The hefty supporting profile is comprised of a 2-3/16" radius convex semicircular arc on the top left, connected to a 1/2" tall vertical line segment in the center, joined to a 51/64" cove with a 7/16" wide horizontal line on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these clear back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 3-27/32" tall with a projection of 3-37/64" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.386
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.573
Top Cutter Head
Width: 5.250
Depth of Cut: 0.938
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$367.00
Not Needed
Total:
$647.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$391.00
Not Needed
Total:
$690.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$415.00
Not Needed
Total:
$733.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
