45 Degree Double Chamfer - 13

45 Degree Double Chamfer - 13

45 Degree Double Chamfer - 13

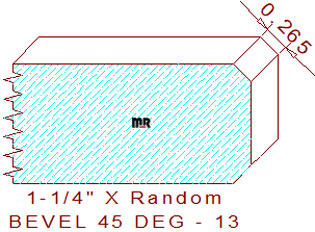

This double chamfered edge moulding 45-degree - 13 measures 1-1/4" thickness requiring any size width of six-quarter lumber for milling on an industrial moulder. The simplistic profile comprises two forty-five-degree bevels at .188" tall and wide, leaving a 7/8" straight section in the center with a splay face dimension of 17/64" wide on the top and bottom edge of a piece of lumber measuring 1-1/4 thickness. Machine all four edges simultaneously by producing a set of knives for both the right and left vertical cutterheads.

Do you ever wonder why certain wood species have tear-out problems during milling? Find out more on reducing and eliminating these issues by changing the cutter head hook angle on the knives. Consider purchasing 12/20 degree, duel angle cutter heads; this will save a substantial amount of money when investing in this style of molder tooling.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Thickness = 1.250" / Depth of Cut = .250" (right blades) & .250" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
