45 Degree Double Chamfer - 29

45 Degree Double Chamfer - 29

45 Degree Double Chamfer - 29

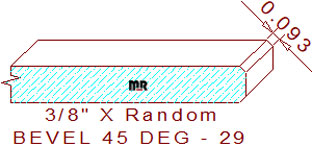

This double chamfered edge moulding 45-degree - 29 measures 3/8" thickness requiring any size width of resawn four-quarter lumber for milling on an industrial moulder. The modest profile comprises a forty-five-degree bevel at .066" tall and wide, leaving 1/4" tall line in the center, and two splay face dimensions of 3/32" wide on the edges of a piece of lumber measuring 3/8" thickness. Machine four edges simultaneously by producing a set of knives for both the right and left vertical cutterheads.

Ever wonder why some knives never exactly line up with one another in the cutter head? Perhaps a Weinig optical measuring stand and reviewing the process in which you align the blades in the cutter head will help eliminate this issue.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Thickness = .375" / Depth of Cut = .125" (right blades) & .125" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
