57 Degree Back Bevel Cutter - 1

57 Degree Back Bevel Cutter - 1

57 Degree Back Bevel Cutter - 1

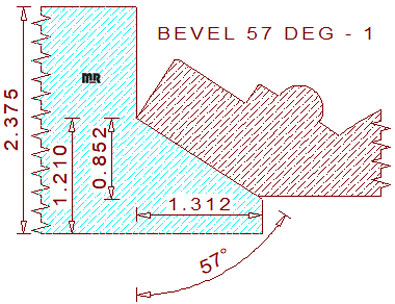

This 57-degree - 1 back bevel cutter is designed to mill a chamfer on the backside of a piece of larger sized bed, crown or cove moulding. On this bevel design the maximum depth of cut is 1.312" with the maximum height of cut being set at .852". All sprung moulding profiles we design have height numbers near the edge of the degree on the paperwork we provide, that number must be smaller than the height number in the image above, in this case .852" for this knife design to be able to cut properly while milling, if not, select another size bevel of the same degree suitable for your application.

Before you begin knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill this pattern on your machinery. Take advantage of our specialized design skills, over thirty years experience in wood moulding manufacturing, superior designed acrylic templates, and exceptional quality cutters.

For knife quoting purposes use the calculator below, we have added only the important dimensions. A brief detailed explanation on how to use the calculator is located here.

Thickness = 1.625" / Depth of Cut = 1.312" (right or left knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
