63 Degree Back Bevel Cutter

63 Degree Back Bevel Cutter

63 Degree Back Bevel Cutter

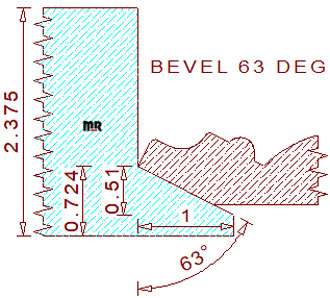

These 63 Degree Back Bevel Moulding Knives are designed to machine a sixty-three-degree chamfer on the left vertical cutter head in the molder on the backside of a piece of crown, cove, or bed moulding when milled sprung (laying horizontally flat). These knives create only half the determining factor of the final height and projection of these types of patterns when installed. The other half of the equation will be a degree that combined equals ninety or slightly more, depending on the manufacturer's tolerances.

Mirror Reflections provides the cut steel size on all their template & knife designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of our enthusiasm for the overall success of your woodworking business.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Thickness = 1.625" / Depth of Cut = 1.000" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
