Floor/Shoe Rail Moulding 4-1/4" - 1

Floor/Shoe Rail Moulding 4-1/4" - 1

Floor/Shoe Rail Moulding 4-1/4" - 1

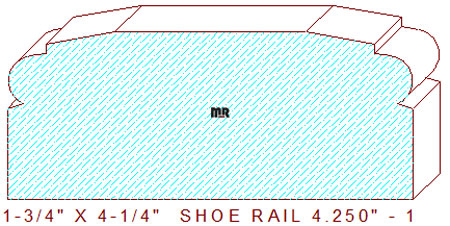

This floor/shoe rail moulding 4-1/4" - 1 measures 1.750" thickness. The width can be milled to any desired size within the parameters of the moulder or shaper used to mill the pattern. The profile is composed of a 1" tall vertical line on the sides, attached to a small chamfer and a thumbnail shaped bead, connected to a 3/32" tall vertical line and a 23/32" wide bevel on the face side; at this overall size, the horizontal line in the center will measure two-inches wide, but it can accommodate many sizes of balusters by a simple radial adjustment of the left vertical cutter head. Browse our handrail category to find a beautiful pattern to complement this detail.

Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on knife marks, learn how machine feed rates and rpm of the cutter head can directly affect the quality of your finished mouldings.

Before you begin knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill this pattern on your machinery. For knife quoting purposes, use the calculator below; we have added only the important dimensions. A brief detailed explanation on how to use the calculator is located here.

Thickness = 1.750" / Depth of Cut = 1.250" (right blades) & 1.250" (left knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
