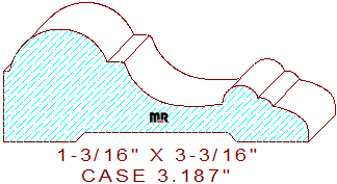

This awesome looking casing measures 3-3/16" wide by 1-3/16" thickness, the profile has amazing detail with a half round bead that is flanked by a small fillet on each side, a deep cong'e in the middle with half, and quarter rounded beads utilized in transition to the sloped radius edge. There are a total of three design patterns in this dxf file, there is a single top knife approach to milling this profile which is the total depth of cut at 1-3/16", and a two knife approach to mill this detail, part of the detail from the right spindle and the remaining portion form the top spindle.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
