Chair Rail 3-3/16" - 2

Chair Rail 3-3/16" - 2

Chair Rail 3-3/16" - 2

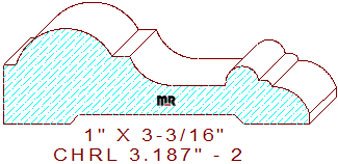

This glamorous 3-3/16" - 2 chair rail measures 3.187" wide by 1.000" thickness, allowing the detail to be milled out of five-quarter lumber. The beautiful profile composes a 1/8" wide line at a 5/8" thickness dimension on the top left, connected to a one-inch wide convex arc and a 3/16" wide flat line segment joined to a 1" wide congee, derived from a 15/32" concave semicircle in the center, attached to an 11/32" wide half round and a 9/64" quarter round bead that transitions into an elliptically shaped curvature leaving a 7/64" thickness dimension on the right side of the design. We offer a door casing profile that has similar design characteristics in the same width, but 3/16" larger in height for your review and consideration, casing 3.187".

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 0.980
Bottom Cutter Head
Width: 3.187
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$255.60
$239.85
Total:
$495.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$271.35
$255.60
Total:
$526.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$287.09
$271.35
Total:
$558.44
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
