Door/Window Casing 3-1/4" - 145

Door/Window Casing 3-1/4" - 145

Door/Window Casing 3-1/4" - 145

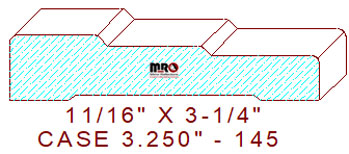

This stepped door/window casing 3-1/4" - 145 measures 3.250" in width by .687" in thickness. The delightful pattern contains a 1-1/32" raised fillet with 3/32" rounded corners on the top left. The inner radius is tangent off a 7/64" deep beveled edge merged with a 1-5/64" flat section with an elevation changing beveled edge in the center. The remaining area retains a 1-9/64" horizontal fillet with a 3/32" rolled edge on the design's right side. The recommended rough wood rip size using four-quarter lumber is 3-1/2" wide. We offer many baseboard patterns to compliment this design; here is one you may want to review and consider, baseboard 5.000" - 40.

Do you ever wonder why certain wood species have tear-out issues during milling? Find out more about reducing and eliminating these issues by changing the cutter head hook angle on the knives. Consider purchasing 12/20-degree duel angle cutter heads. When investing in moulder tooling, your company will save substantial money.

The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.462
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$243.00
$243.00
Total:
$486.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$259.00
$259.00
Total:
$518.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.00
$275.00
Total:
$550.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
