Door/Window Casing 3-15/32" - 4

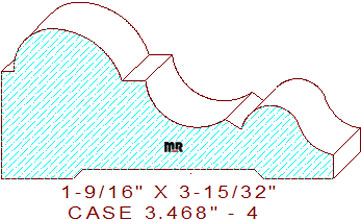

This elegant 3-15/32" - 4 door/window casing measures 3.468" wide by 1.562" thickness, requiring the use of eight-quarter lumber for milling on an industrial-grade molder. The lavish profile contains a 1/8" wide line segment at a 1-1/8" thickness on the top left. This area merges with a two tangent radius thumbnail shaped convex arc and a 1/4" full fillet that joins a 35/64" scotia in the center. Attached to a 13/64" wide splay faced beveled line that attaches to a two tangent radius cyma reversa on the right side of the design.

Before beginning knife grinding procedures, please read our article on knife cutting circles to see if you can safely cut this pattern on your machinery, this pattern will not be able to be milled on specific moulders.
