Casing Moulding 3-1/2" - 10

Casing Moulding 3-1/2" - 10

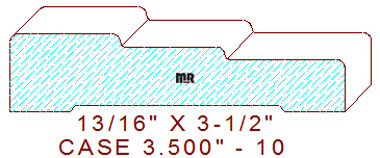

This stepped casing moulding 3-1/2" - 10 measures 3.500" wide by .812" thickness with a depth of cut of .517" on the top horizontal set of moulding knives. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.

The tiered profile consist of a 1-5/32" wide double eased edge fillet, that transitions into a 1-3/32" wide by 3/32" deep step, connected to a 1-1/4" wide eased edge, all the round overs in the profile are 3/32" radiuses. We also have another stepped casing for your review and consideration with slightly different dimensions within the profile located here, Casing 3.500" – 106.

Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our vast variety of creative moulding knife designs for years, we trust you will find that special moulding profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us, we would be honored to assist you.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
