Casing Moulding 3-1/2" - 106

Casing Moulding 3-1/2" - 106

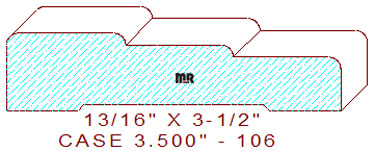

This Tiered Casing Moulding 3-1/2" - 106 measures 3.500" wide by .812" thickness with a depth of cut of .531" on the top horizontal set of moulding knives. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.

The stepped profile consist of a 1-1/4" wide double eased edge fillet, that transitions into a 1-1/8" wide by 1/8" deep step, connected to another 1-1/8" wide stepped eased edge, all the round overs within the profile have a 1/8" radius". We also have another stepped casing for your review and consideration with slightly different dimensions within the profile located here, Casing 3.500" – 10.

Try one of our 125% concentration ultimate borazon grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle, will create a superior micro edge on all your high-speed steel moulding knives. Here is an article to help you understand how to align a borazon wheel to axial constant position on a Weinig R 960 profile knife grinder. During the machining process the moulding knives will be capable of milling some of the finest quality architectural mouldings you have ever produced.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
