Casing Moulding 3-1/2" - 103

Casing Moulding 3-1/2" - 103

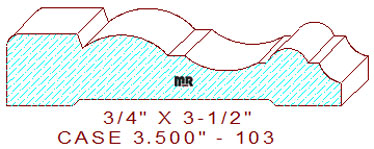

This eye-catching casing moulding 3-1/2" - 103 measures 3.500" wide by .750" thickness. The striking profile is composed of a 41/64" wide horizontal line with a 1/8" eased outer edge and a small chamfer that transitions into two sets of cascading convex arcs, they are divided by a 11/16" radius scotia and a 5/16" cove and two small horizontal lines. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. We offer a couple of other similar casing and base profiles for your review and consideration, case 3.250" - 24, case 3.250" - 37, case 3.500" - 94, and base 6.000" - 180, baseboard 5.750" - 7.

Try one of our 125% concentration ultimate borazon grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle, will create a superior micro edge on all your high-speed steel blades. Here is an article to help you understand how to align a borazon wheel to axial constant position on a Weinig R 960 profile knife grinder. During the machining process the moulding knives will be capable of milling some of the finest quality architectural mouldings you have ever produced.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .687" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
