Casing Moulding 3-1/2" - 94

Casing Moulding 3-1/2" - 94

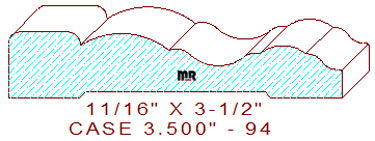

This custom casing moulding 3-1/2" - 94 measures 3.500" wide by .687" thickness. The graceful profile is comprised of a 3/4" wide horizontal line with two 1/8" eased edges, connected to a 13/16" radius arc that transitions into a bidirectional cyma reversa, connected to a shallow 25/64" semicircle with a small ogee positioned on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. We offer a couple of other similar casing and base profiles for your review and consideration, case 3.250" - 24, case 3.250" - 37, case 3.500" - 103, and base 6.000" - 180, baseboard 5.750" - 7.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel moulding cutters in a minimal amount of time. Read our article on the importance of having the profile knife grinder perfectly level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding custom knives.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .562" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
